Series 4 Wall-mounted cooker hood 90 cm Matt blackDWBA98J60I
DWBA98J60I
1 / 0
Series 4 Wall-mounted cooker hood 90 cm Matt blackDWBA98J60I
DWBA98J60I
Series 4 Wall-mounted cooker hood 90 cm Matt blackDWBA98J60I
DWBA98J60I
Technical Overview
Sound power at max. speed (2010/30/EC)
67 dB
Max. air extraction
700 m³/h
Colour
Matt black
Material body
zinc plated
Built-in / Free-standing
Built-in
Width
90 cm
Highlights
Specifications
Width
90 cm
Colour
Matt black
Installation typology
Wall-mounted
Operating Mode
Air extraction only
Total power of the motors
148 W
Type of control setting and signalling devices
touch control
Number of speed settings
3-stages + intensive setting
Max. air extraction
700 m³/h
Sound power at max. speed (2010/30/EC)
67 dB
Total annual energy consumption
48.0 kWh/annum

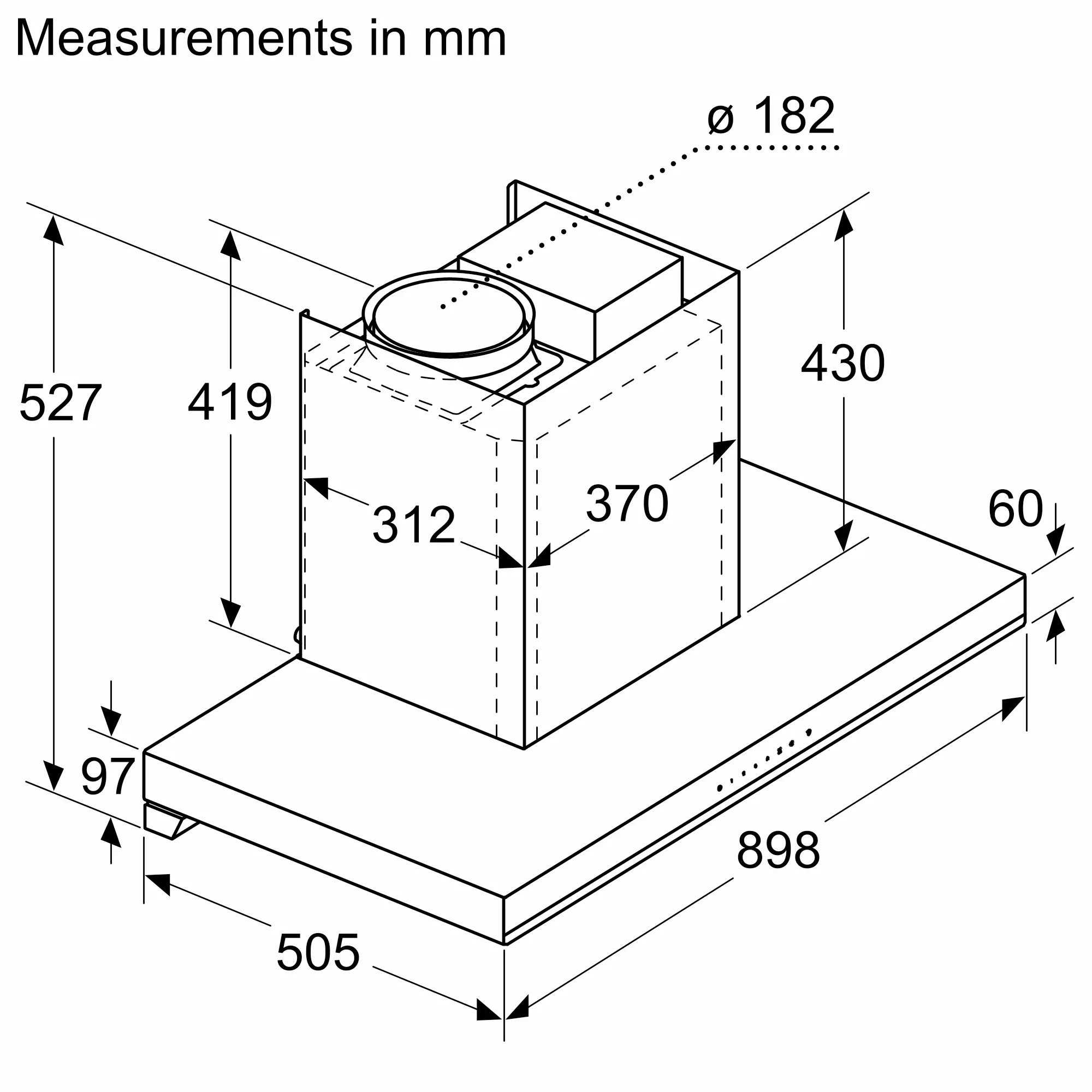

Height of the appliance
527 mm
Width of the appliance
900 mm
Depth of the product
506 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob
650 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
180 mm
No-return airflow flap
Yes
Length electrical supply cord
180 cm
Net weight
22.6 kg
1 / 0
PerfectAir
No
SilentPowerDrive - efficient and extra silent
No
Extremely quiet
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
None
Total power of the lamps
3 W
Color temperature
Daylight (>= 5.400 K)
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Hob-based hood control
No
