PIB375FB1E

Series 6 Domino hob, induction 30 cm Surface mount with frame
PIB375FB1E

Two year warranty
1 / 0
Photo Nr. 1 of the product PIB375FB1E
Photo Nr. 2 of the product PIB375FB1E
Photo Nr. 3 of the product PIB375FB1E
Photo Nr. 4 of the product PIB375FB1E
Photo Nr. 5 of the product PIB375FB1E
Photo Nr. 6 of the product PIB375FB1E
Photo Nr. 7 of the product PIB375FB1E
Photo Nr. 8 of the product PIB375FB1E
Photo Nr. 9 of the product PIB375FB1E
Photo Nr. 10 of the product PIB375FB1E
Photo Nr. 11 of the product PIB375FB1E
Photo Nr. 12 of the product PIB375FB1E
Photo Nr. 13 of the product PIB375FB1E
Photo Nr. 14 of the product PIB375FB1E
Photo Nr. 15 of the product PIB375FB1E
Photo Nr. 16 of the product PIB375FB1E
PIB375FB1E

Series 6 Domino hob, induction 30 cm Surface mount with frame
PIB375FB1E

Two year warranty
Two year warranty
German Engineering
German Engineering
15 year
15 year
PIB375FB1E

Series 6 Domino hob, induction 30 cm Surface mount with frame
PIB375FB1E

Two year warranty
Two year warranty
German Engineering
German Engineering
15 year
15 year

Technical Overview

Dimensions
51x306x527 mm
Cooktop type
Induction cooktop
Total number of positions that can be used at the same time
2
Type of control setting and signalling devices
touch control
Residual heat indicator
Separate
Basic surface material
Ceramic
Frame type
Design frame

Highlights

Awards

Visual badge of the award

Specifications

Cooktop type
Induction cooktop
Width
30 cm
Total number of positions that can be used at the same time
2
Dimensions of the heating elements
1 x (21,0 cm Ø), 1 x (14,5 cm Ø)
Power of the heating elements (maximum values shown, depending on gas type)
1 x 1.4 (2.2), 1 x 2.2 (3.7) kW
Basic surface material
Ceramic
Frame type
Design frame
Main colour of product
Black
Energy consumption of hob
175.0 Wh/kg

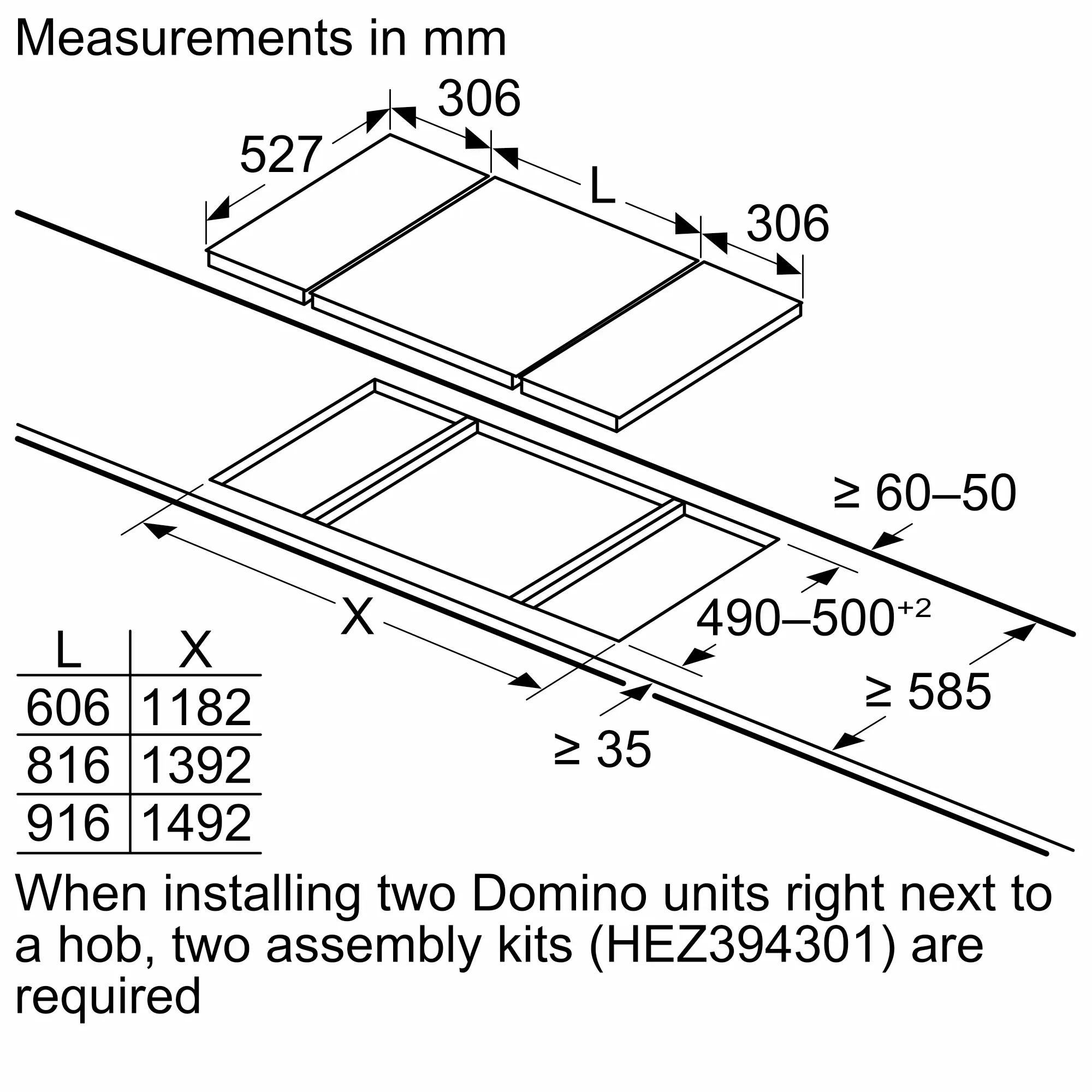

Dimensions
51x306x527 mm
Dimensions of the packed product (HxWxD)
110x370x573 mm

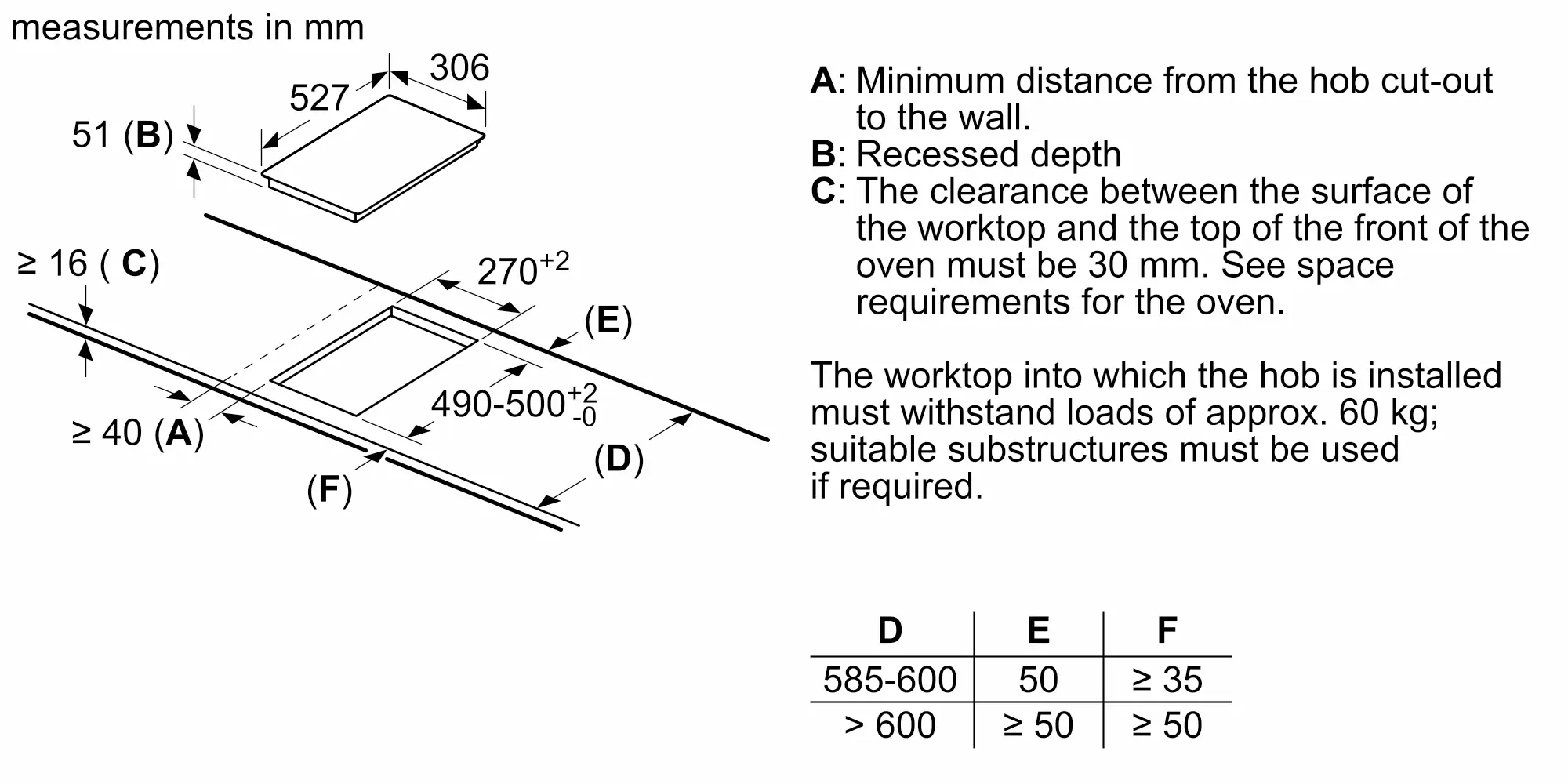

Minimum height for installation
51 mm
Maximum height for installation
51 mm
Minimum width for installation
270 mm
Maximum width for installation
270 mm
Depth for installation
490 mm
1 / 0
Photo Nr. 1 of the product
Photo Nr. 2 of the product
Photo Nr. 3 of the product
Photo Nr. 4 of the product
Photo Nr. 5 of the product
Photo Nr. 6 of the product
Photo Nr. 7 of the product
Photo Nr. 8 of the product
Photo Nr. 9 of the product
Photo Nr. 10 of the product
Photo Nr. 11 of the product
Connection Rating
3700 W
Fuse protection
GENERAL.N_A A
Voltage
220-240 V
Length electrical supply cord
110 cm
Plug type
No plug (electrical connection by electrician)
Included user manuals
[AR, DA, DE, EN, ES, FI, FR, ID, IT, NL, NO, PL, PT, SV]
Type of control
DirectSelect touch control
hotplate control settings
17-stage power
Cooking zone flexibility
Ring Zone
powerBoost
Yes
Illuminated Cooking Zones
No
fryingSensor
No
Infrared cooking sensor
No
Quick Start
Yes
Keep warm function
No
FlameSelect
No
Type of pan support
Not applicable
Dishwasher suitable pan support
No
Ignition system
No
Timer
Yes
Hob-based hood control
No
Residual heat indicator
Separate
Safety device
Child lock, Safety shut-off,
