Serie | 6 90 cm Gas Hob Stainless steel

PCR9A5B90


Cook up a storm by controlling nine levels of fire at your fingertips using FlameSelect, for perfect cooking results.

Highlights

Convenience

DualWok: Our flame is so gentle that even chocolate melts at the sight of it.

Bosch gas hobs are strong and gentle at the same time. High power, for instance, brings pasta water to the boil in no time at all. But that wasn’t enough for us – or you, either. Low power is just as important for your favourite dishes. So we made sure that our low power was particularly gentle for simmering. So gentle, in fact, that it even melts chocolate with no risk of scalding, makes perfect sauces, or simply keeps your food hot.

Reviews

Technical Specifications

Heating Functions
  • 5 gas burners
  • Front left Economy burner maximum power up to 1,000 W (depending on gas type)
  • Rear left Standard burner maximum power up to 1,750 W (depending on gas type)
  • Centre WOK burner maximum power up to 5,000 W (depending on gas type)
  • Front right Standard burner maximum power up to 1,750 W (depending on gas type)
  • Rear right High-speed burner maximum power up to 3,000 W (depending on gas type)
Design
  • Stainless steel
  • sword knobs
Comfort
  • FlameSelect
  • Cast iron pan supports with rubber feet
  • Flame failure safety device
Technical Information
  • Appliance dimension (HxWxD): 55 mm x 915 mm x 520 mm
  • Required niche size for installation (HxWxD mm) : 55 x 850-852 x 490-502
  • Gas connection rating: 12,500 W
  • Electrical connection rating: 1.1 W
  • Length of main cable: 150 cm
  • Preset nozzle: Natural gas 20 mbar
  • Liquid gas nozzles (28-30/37mbar) included
More Info
Energy input Gas
Type of control setting and signalling devices sword knobs
Features FlameSelect, Wok burner
Energy efficiency of hob 60.0 %
Home Connect
Color of frame Stainless steel
Color of surface Stainless steel
Construction type Built-in
Number of electric plates 0
Number of electric cooking zones 0
Number of gas burners 5
Number of halogen plates 0
Installation typology Built-in
Type of pan support Elongated cast iron pan support
Total number of positions that can be used at the same time 5
Number of radiant plates 0
Number of electric warming zones 0
Dimensions of the product (mm) 45 x 915 x 520 mm
Net weight (kg) 15.533 kg
Location of 1st heating element front left
Type of heating element Gas
Location of 2nd heating element center left
Location of 3rd heating element back left
Type of 3rd heating element Gas
Location of 4th heating element middle back
Location of 5th heating element back right
Type of 5th heating element Gas
Location of 6th heating element center right
Location of 7th heating element front right
Type of 7th heating element Gas
Location of 8th heating element front middle / central
Location of 9th heating element front centre/cent
Type of 9th heating element Gas
Type of safety device for gas Electromagnetic for each burner
Power on indicator
Residual heat indicator without
Main on/off switch
Length electrical supply cord (cm) 150 cm
Electrical connection rating (W) 1 W
Energy input Gas
Frequency (Hz) 50; 60 Hz
Gas connection rear, right
Gas connection rating (W) 12,500 W

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

No documents available

No documents available

Download Disassembly and Dismantling Manual

Information for professionals about disassembly and dismantling according EU ecodesign regulation ((EU) No 666/2013, (EU) No 66/2014 and (EU) No 814/2013)

To contact form

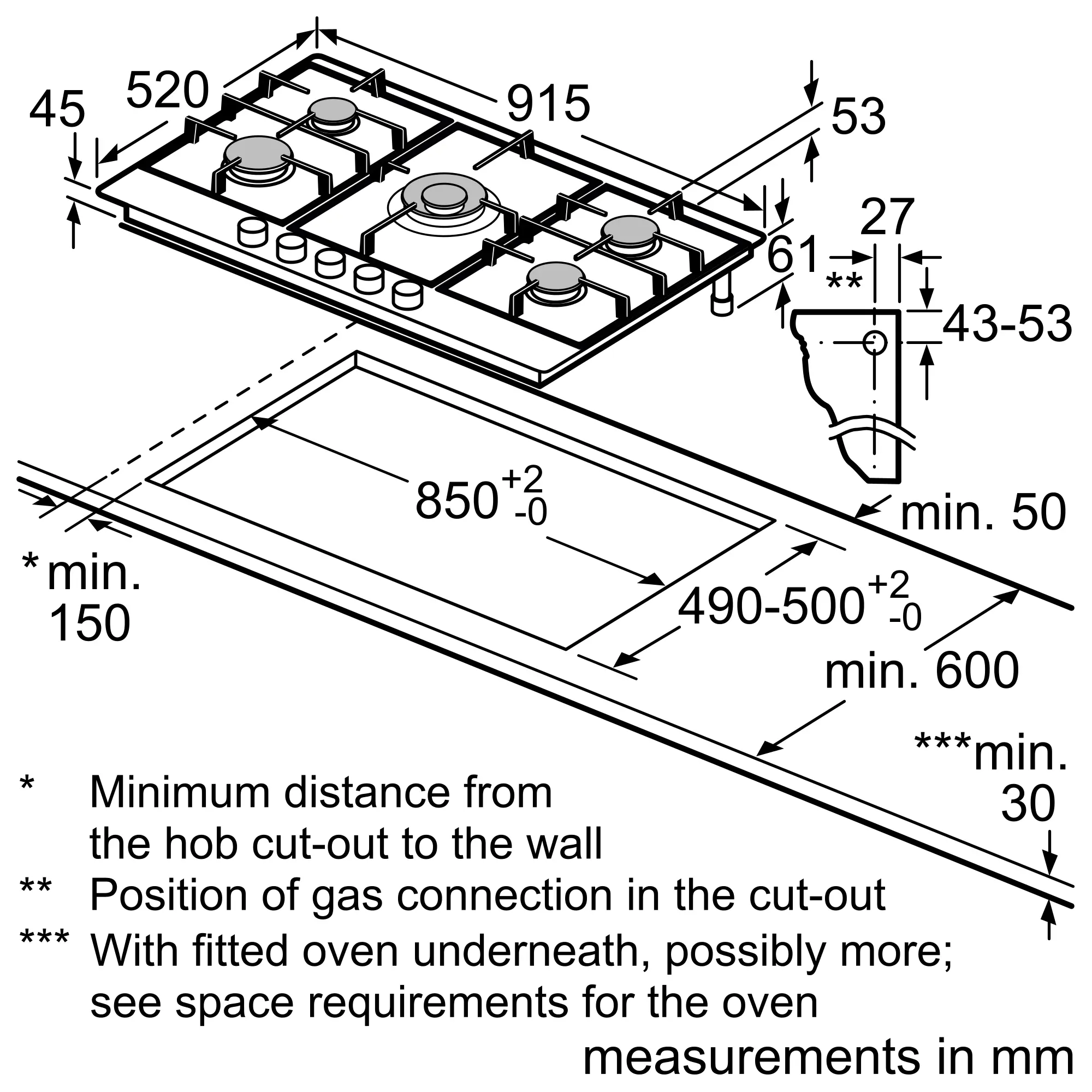

Dimensional Drawings
