Technical Overview
Sound power at max. speed (2010/30/EC)
60 dB
Max. air extraction
620 m³/h
Boost position air extraction
1000 m³/h
Colour
Stainless steel
Material body
Stainless steel
Built-in / Free-standing
Built-in
Width
90 cm
Highlights
Specifications
Width
90 cm
Colour
Stainless steel
Installation typology
Island
Operating Mode
Convertible
Total power of the motors
260 W
Type of control setting and signalling devices
Button
Number of speed settings
3-stage + 2 intensive
Max. air extraction
620 m³/h
Boost position air extraction
1000 m³/h
Sound power at max. speed (2010/30/EC)
60 dB
Sound power boost (2010/30/EC)
71 dB
Max. air recirculation
400 m³/h
Boost position output recirculating
480.0 m³/h
Sound power at max. speed (recirculation)
73 dB
Sound power boost (recirculation)
76 dB
Grease filter material
Washable aluminium
Total annual energy consumption
36.9 kWh/annum
Height of the appliance
46 mm
Width of the appliance
900 mm
Depth of the product
600 mm

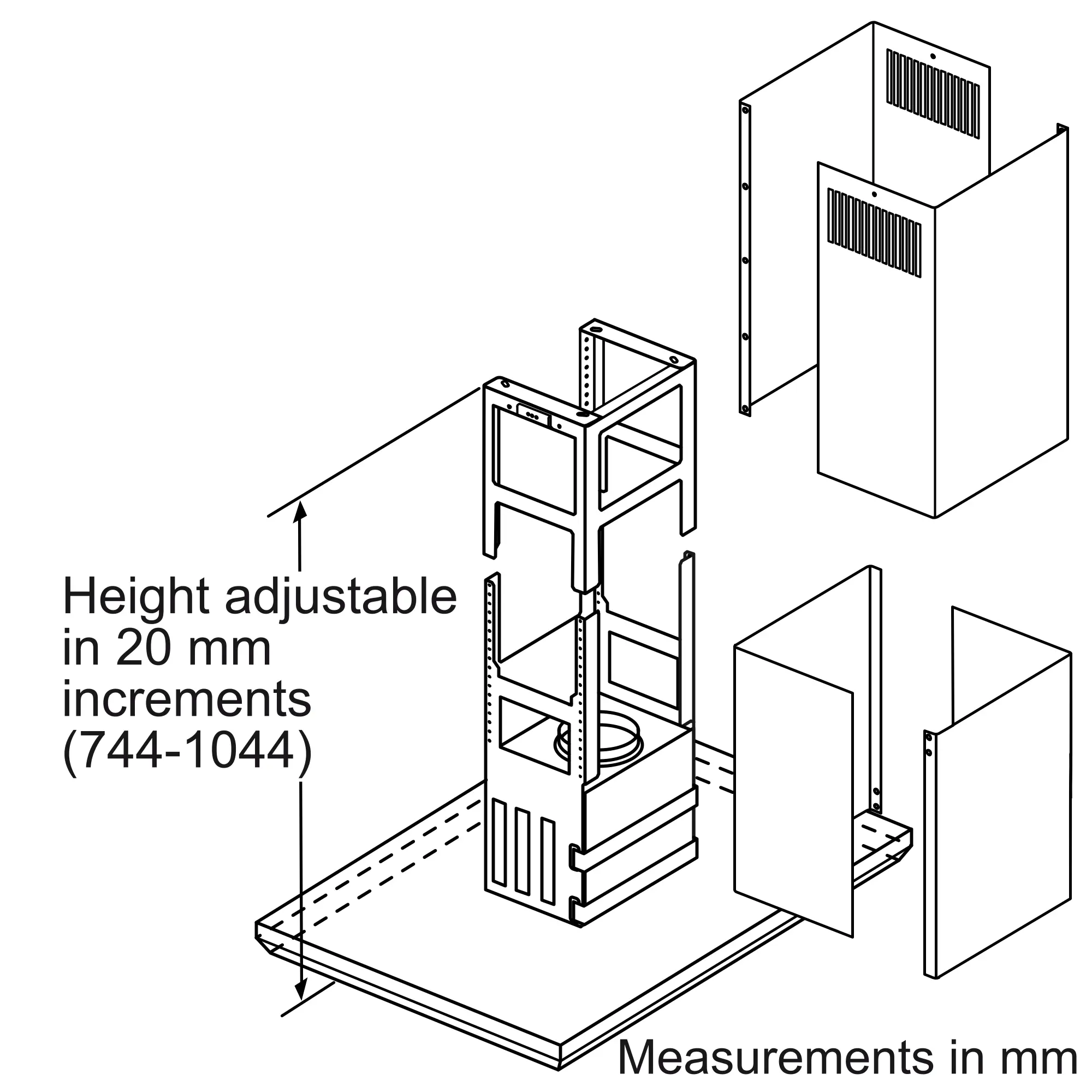

Height of the chimney
698-878/698-998 mm

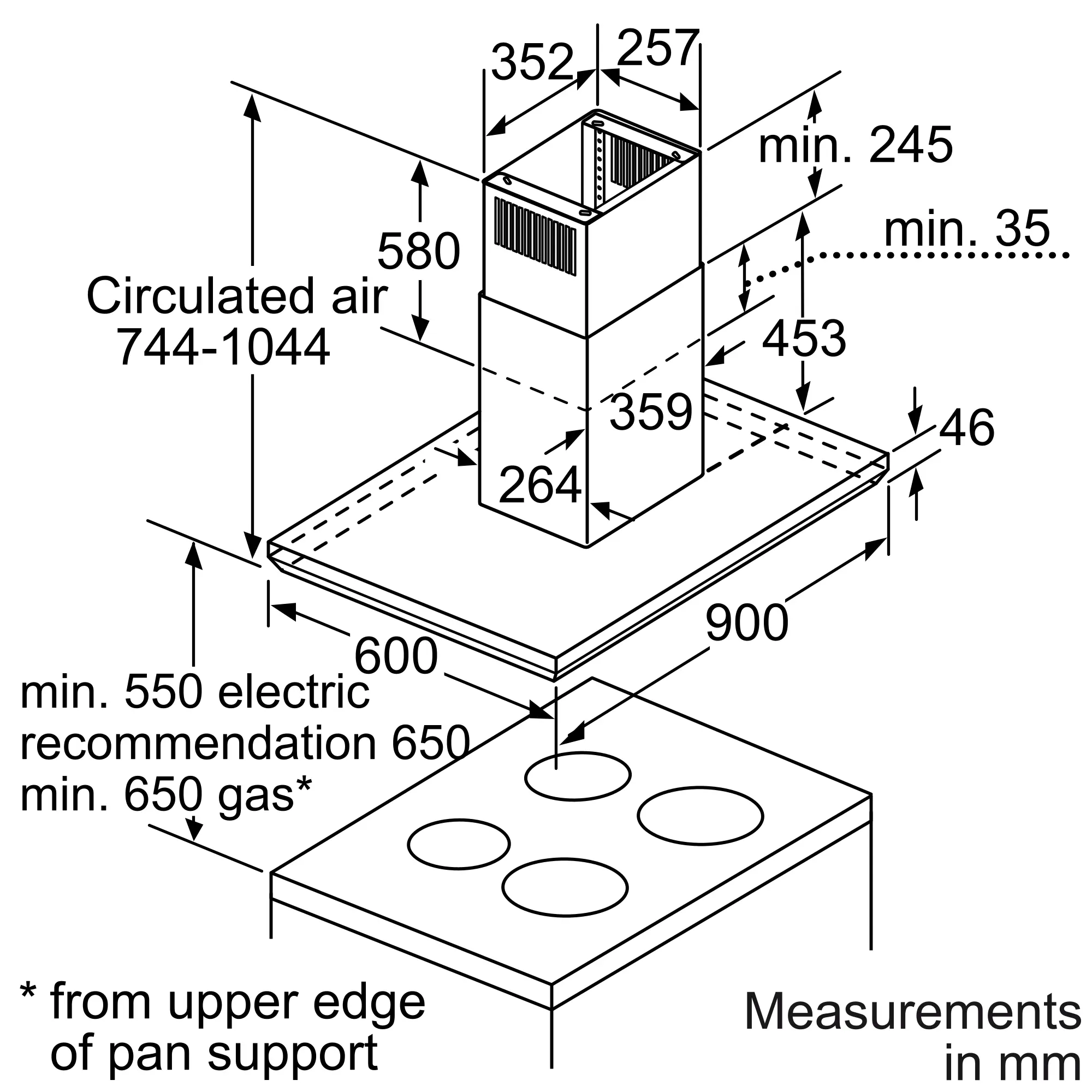

Minimum distance above an electric hob
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
35.0 kg
1 / 0
PerfectAir
No
SilentPowerDrive - efficient and extra silent
Yes
Extremely quiet
No
Clean filter reminders
Yes
Boost position
Yes
Delay Shut off modes
Yes
Remote control
No
Type of lamps used
LED
Total power of the lamps
12 W
Color temperature
Neutral (3.500 K)
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Hob-based hood control
No
